1500W Handheld Laser Welding Machine

Product Categories

Chongqing Lianwai Technology Co., Ltd.

Contact Now

Name: 1500W Handheld Laser Welding Machine
Brand: GENWELD
Price: 1 USD

Brand Name : GENWELD

Model Number : LW-G1500W

MOQ : 10

Payment Terms : MoneyGram

watt : 1500W

name : Handheld Laser Welding Machine

Power adjustment range : 10%-100%

Working mode : continuous/modulation

Laser wavelength : 1080nm

Modulation frequency : 20KHZ

Contact Now

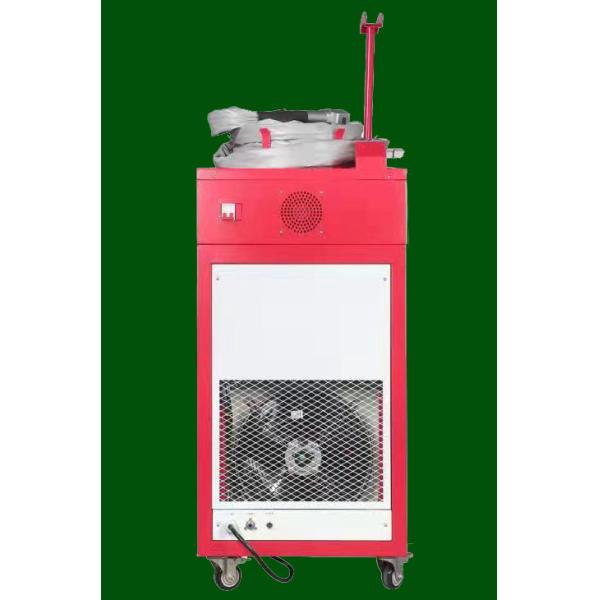

The LW-G1500W handheld laser welding machine consists of a laser unit and a welding unit. It replaces the previous fixed optical path, is flexible and convenient, and has a longer welding distance. It implements flexible non-contact welding on hard-to-access parts, achieving high efficiency, high precision, and high performance.

Equipment overview
Rated input power Three-phase	220V±5%/50Hz
Output power	1500W
Power adjustment range	10%-100%
Power stability	≤±3%
Continuous working time	24 hours
Working mode:	continuous/modulation
Environmental requirements Temperature	5-40℃, humidity 10-90%
Laser wavelength	1080nm
Modulation frequency	20KHZ
Cooling method	Water cooling (dual temperature and dual control)
Speed	of light output 1 beam
Focus focal length	200mm
Collimation focal length	100mm
Minimum focus diameter	D20 (≤0.4MM)
Welding head	with coaxial shielding gas machine swing function
Automatic wire filler special for laser welding	can be matched
Maximum power consumption	5.5KW
Water chiller parameters
Power supply system 220V±5%, 50Hz 40A
Cooling water flow 8L/min
Chiller ruler	60010501210
Cooling capacity	5200W

1500W Handheld Laser Welding Machine
